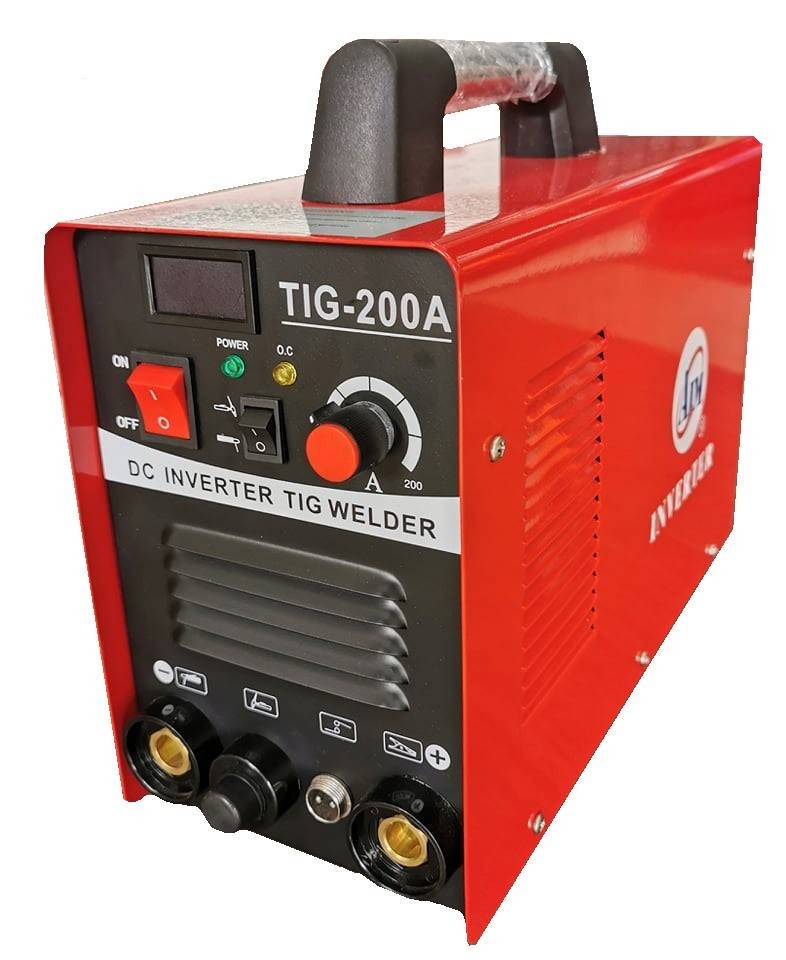

AIM TIG 200A WELDING MACHINE
|
SPECIFICATION
|
|
|
Input Voltage (V) |
AC220V |
|
Frequency (Hz) |
50/60 |
|
Rated Input Current (A) |
43/28 |
|
Output Current Range (A) |
10-200 |
|
No-Load Voltage |
56 |
|
Rated Input Voltage (V) |
28/18 |
|
ARC Force Current Range Duty Cycle (%) |
60 |
|
No-Load Loss (W) |
40 |
|
Arcing Way |
Transfer |
|
Efficiency (%) |
80 |
|
Power Facor |
0.73 |
|
Housing Protection Grade |
IP21 |
|
Insulation Grade |
F |
|
Net Weight (KG) |
9 |
|
Dimension (MM) |
375×155×232 |
Product Speciality
1.Applying the inverter technology to reach high working frequency, small dimension and
wieght, very convenient for taking around;
2.With the design og HF and pulse hot-start to realize outstanding arc-start. The welding current is powerful enough
and the cost performance ratio is high;
3.Having the function of auto-protection against over-voltage and over-current;
4.With spcial design for output features. More suitable for wire-feeding to make welding seam beautiful;
5.Designed for wide range of input voltage. The high duty-cycle makes the machines very
suitable for continuous operation in the factories;
6.Simple in design,wonderful in structure, easy in maintenance, reliable and endurable;
7.Suitable for the welding of stainless steel,carbon steel, copper, etc
