AIM F6025T6 6000W LASER CUTTING MACHINE

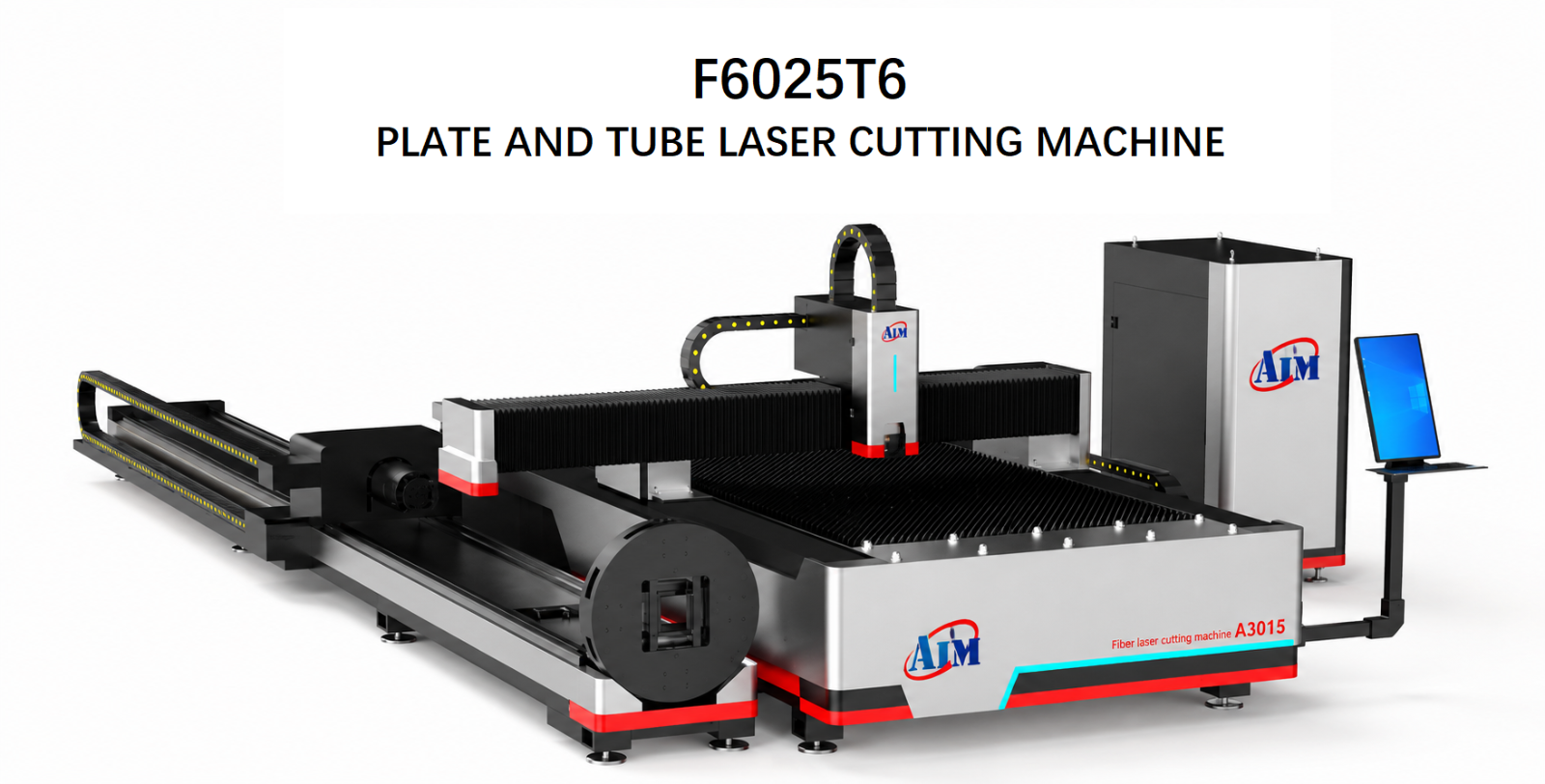

F6025T6 6000W Integrated Sheet and Tube Laser Cutting Machine
|
Machine Specification |
|
Table Work Size |
6000mm x 2500mm |
|
Tube Rotary Axis |
6000mm |
|
Machine Frame |
Heavy Duty Frame |
|
Laser Source |
RAYCUS/MAX |
|
Laser Power |
6000w |
|
Servo Motor System |
Inovance China |
|
Laser Cutting Head |
BLT421 with Auto Focus Function |
|
Laser Control System |
FSCUT 3000DE |
|
Water Chiller System |
Hanli |
|
Precision Gear Reducer |
Shimpo Japan |
|
Lubrication System |
Fully Automatic |
|
Proportional Valve |
SMC |
|
Transmission System |
Hiwin Guide Rails + YYC Rack |
|
Control Panel |
21.5 Inch |
|
Technical Data |
|
Maximum Acceleration |
1.2G |
|
Maximum Positioning Speed |
120m/min |
|
Repositioning Accuracy |
±0.02mm |
|
Positioning Accuracy |
±0.03mm |
|
Rated Voltage |
380V 3 Phase 50HZ |
|
Operating Temperature |
0- 40℃, Humidity: ≤80% |
|
Protection Level |
IP54 |
