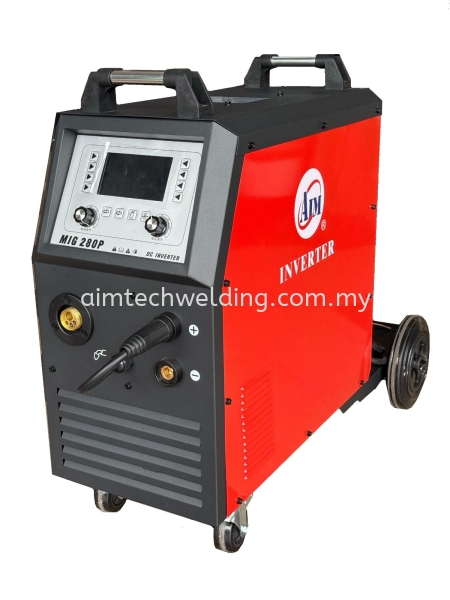

AIM MIG 280P PULSE WELDING MACHINE
Technical Specifications
| Model | MIG-280P |
| Rated Input Voltage/Frequency | Three-phase 380V±15% 50/60Hz |
| Rated Input Power (KVA) | 9.5 |
| Rated Input Current (A) | 14.5 |
| Rated Output Voltage (V) | 28 |
| Rated Duty Cycle (%) | 60 |
| Open Circuit Voltage (V) | 65 |
| Output Current Range (A) | 30-280 |
| Output Voltage Range (V) | 15-32 |
| Power Factor | ≥0.87 |
| Wire Diameter (mm) | 0.8-1.0-1.2 |
| Wire Type | Carbon steel, stainless steel, Aluminum |
| Protection Class | IP21 |
| Insulation Class | F |
| Dimensions (L×W×H) (mm) | 580×295×600 |
| Weight (Kg) | 28 |
