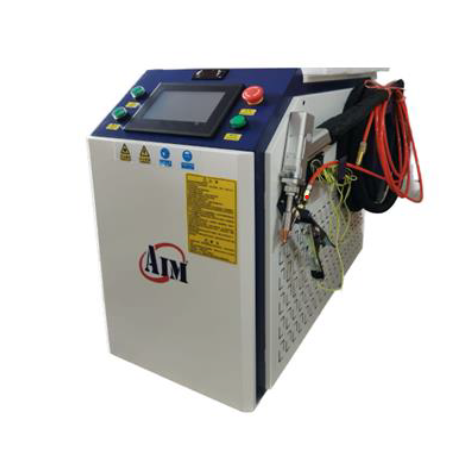

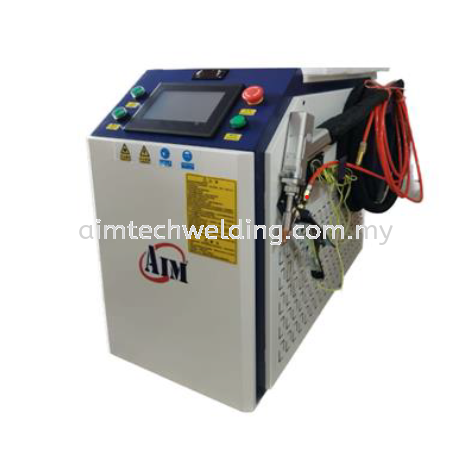

LASER WELDING MACHINE MAX-2000W/ 3000W WITH DOUBLE FEEDER
Download Files
MAX2000W_DOUBLE_FEEDER.pdf (345 KB)
AIM_MAX_3000W_DOUBLE_FEEDING_LASER_HAND_WELDING_MACHINE_NEW_VERSION.pdf (377.41 KB)
MAX2000W_DOUBLE_FEEDER.pdf (345 KB) AIM_MAX_3000W_DOUBLE_FEEDING_LASER_HAND_WELDING_MACHINE_NEW_VERSION.pdf (377.41 KB)| Model | : | MAX-2000W/3000W |
| Laser Wavelength | : | 1080nm (+/- 10nm) |
| Rated Power | : | ≥2000W/≥3000W |
| Beam (M2) | : | 2.2 |
| Optical Fibre | : | At 50M, 10M |
| Modulation Frequency | : | 20KHz |
| Stability | : | <3% |
| Beam Output | : | 1 Beam |
| Cooling Medium | : | Distilled Water, Ionized Water |
| Power Supply | : | 220V±10%/ 415V±10% |
| Welding Material | : | Stainless Steel, Carbon Steel, Aluminium, Copper |

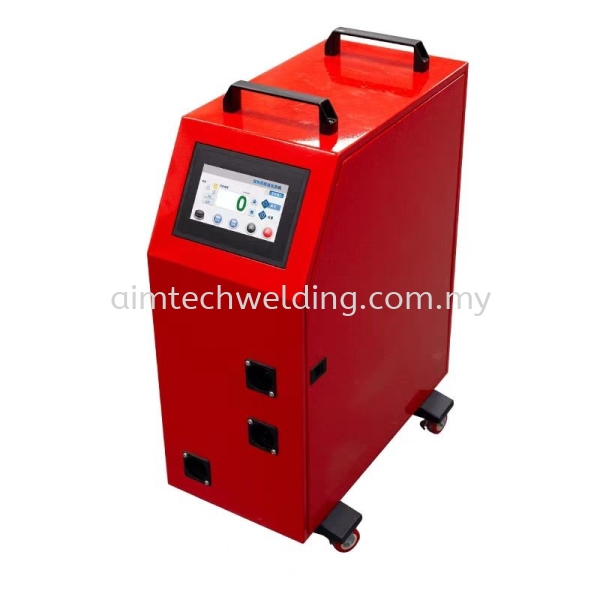

DOUBLE FEEDER SPEC
| Model | : | SUP-AMF-D |
| Size | : | 575*250*670 |
| Display | : | Touch Screen Display |
| Wire Feeding Speed | : | 15~600cm/min (continuosly adjustable) |
| Compatible Wire Size | : | 0.8/1.0/1.2/1.6/2.0MM |
| Support Continuos Feeding | : | Pulse Mode, Single Wire Mode, Double Wire |
